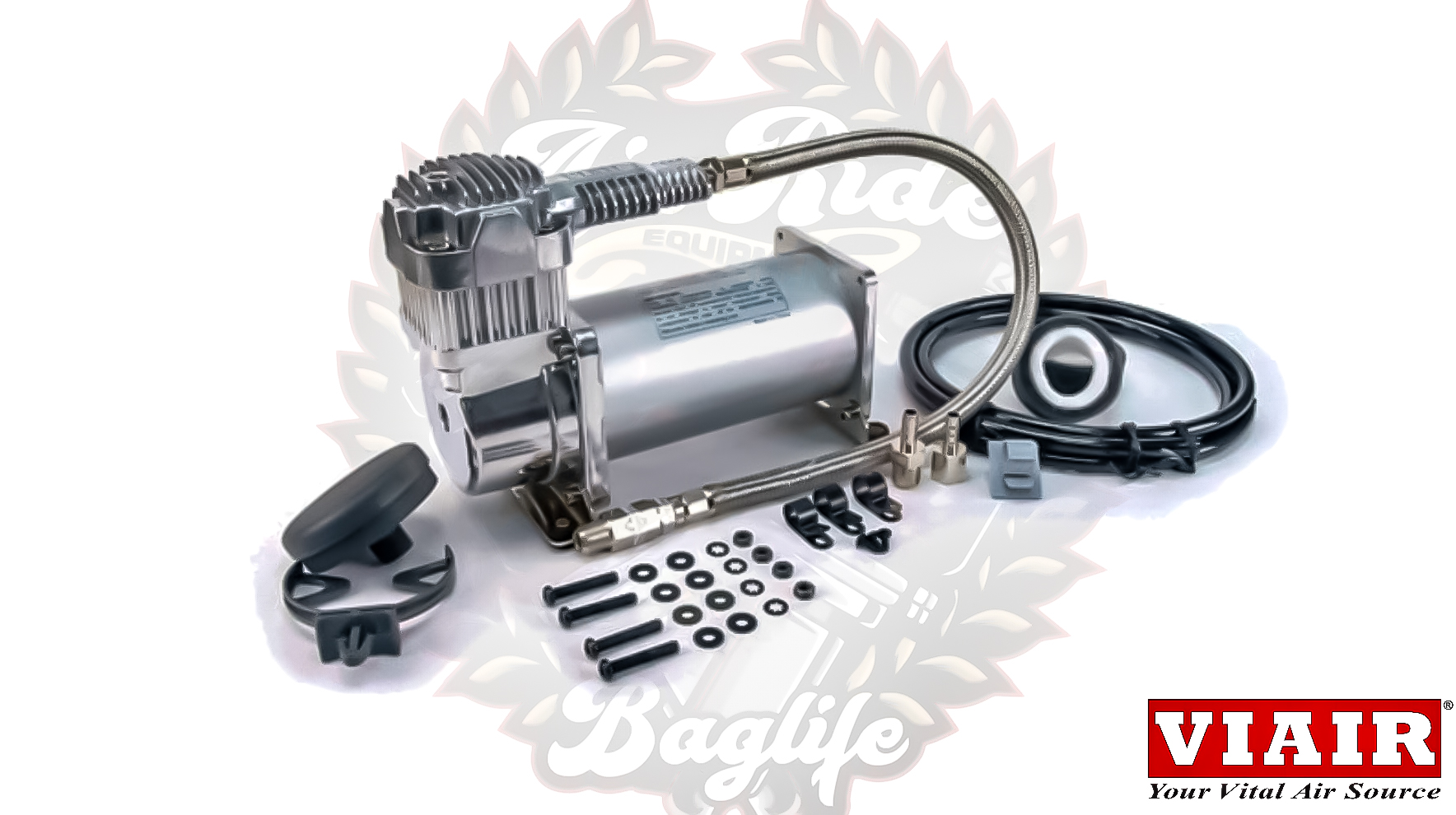

This Pewter 400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.62 CFM/12V and 2.33 CFM/24V flow at zero PSI head pressure. Max working pressure is 150psi. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
| FEATURES |
|---|
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt / 24-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 30-Amps |
| – Max. 24V Amp Draw: 15 Amps |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 9″L x 4″W x 6.75″H |
| – Net Weight: 8.65 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| 12-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 | |||
* Supply Voltage: 13.8 Volts
| 24-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 2.33 | 7 | 0 | 66.0 | 7 |
| 10 | 2.26 | 8 | 1.0 | 63.3 | 9 |
| 20 | 2.20 | 10 | 2.0 | 60.8 | 10 |
| 30 | 2.14 | 10 | 3.0 | 57.0 | 11 |
| 40 | 2.04 | 11 | 4.0 | 53.0 | 12 |
| 50 | 1.94 | 12 | 5.0 | 48.3 | 12 |
| 60 | 1.86 | 12 | 6.0 | 45.7 | 12 |
| 70 | 1.74 | 12 | 7.0 | 40.5 | 12 |
| 80 | 1.70 | 12 | 8.0 | 38.2 | 12 |
| 90 | 1.59 | 12 | 9.0 | 34.6 | 12 |
| 100 | 1.50 | 12 | 10.0 | 32.0 | 12 |
| 110 | 1.40 | 12 | 11.0 | 29.0 | 11 |
| 120 | 1.31 | 12 | 12.0 | 25.5 | 11 |
| 130 | 1.24 | 12 | 13.0 | 23.3 | 10 |
| 140 | 1.17 | 12 | |||
| 150 | 1.10 | 12 | |||
* Supply Voltage: 28.0 Volts
FILL RATES
| 12-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 2 min. 27 sec. (± 05 sec.) |
| 110 to 145 PSI | 55 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 45 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
| 24-VOLT COMPRESSOR | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 24 sec. (± 05 sec.) |
| 85 to 105 PSI | 20 sec. (± 03 sec.) |
| 0 to 145 PSI | 2 min. 16 sec. (± 05 sec.) |
| 110 to 145 PSI | 47 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 38 sec. (± 10 sec.) |
| 85 to 105 PSI | 38 sec. (± 03 sec.) |
| 0 to 145 PSI | 4 min. 08 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 20 sec. (± 05 sec.) |
