VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

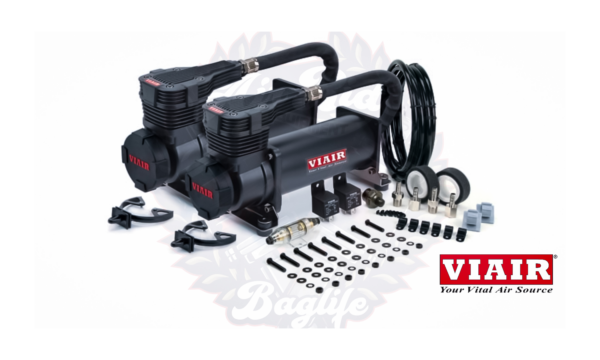

The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Additional Info Download:
| FEATURES |
|---|
| – (2) 485C (Platinum or Stealth Black) Compressors w/Thermal Overload Protectors |
| – (2) Air Filter Assemblies |
| – (2) VIAIR Removable Filter Covers |
| – (2) Remote Mount Brackets |
| – (2) Sets of Remote Mount Fittings |
| – (2) Sets of Spare Air Filter Elements |
| – (2) Leader Hose Clips |
| – (6) Air Line Clips with Included Hardware |
| – (8) Sets of Nuts, Bolts, Washers and Lock Washers |
| – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) |
| – (2) 40-Amp Relays |
| – (1) One Pressure Switch (165 PSI on, 200 PSI off) |
| – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 200 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 46-Amps |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit) |
| – Net Weight: 22.10 lbs. |
| – |
| – |
| – |
| – |
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 3.82 | 23 | 0 | 110.0 | 23 |
| 10 | 3.51 | 26 | 1.0 | 93.0 | 27 |
| 20 | 3.27 | 30 | 2.0 | 84.0 | 31 |
| 30 | 3.05 | 32 | 3.0 | 75.0 | 35 |
| 40 | 2.90 | 35 | 4.0 | 71.0 | 37 |
| 50 | 2.73 | 37 | 5.0 | 65.0 | 39 |
| 60 | 2.61 | 38 | 6.0 | 61.0 | 41 |
| 70 | 2.45 | 40 | 7.0 | 55.0 | 41 |
| 80 | 2.34 | 41 | 8.0 | 50.0 | 42 |
| 90 | 2.24 | 41 | 9.0 | 45.0 | 42 |
| 100 | 2.09 | 41 | 10.0 | 41.0 | 42 |
| 110 | 1.94 | 42 | 11.0 | 39.0 | 41 |
| 120 | 1.87 | 42 | 12.0 | 34.0 | 40 |
| 130 | 1.72 | 42 | 13.0 | 32.0 | 40 |
| 140 | 1.64 | 42 | 14.0 | 29.0 | 39 |
| 150 | 1.55 | 42 | |||
| 160 | 1.48 | 41 | |||
| 170 | 1.37 | 41 | |||
| 180 | 1.29 | 41 | |||
| 190 | 1.22 | 40 | |||
| 200 | 1.13 | 39 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 2 min. 20 sec. (± 10 sec.) |
| 165 to 200 PSI | 35 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 4 min. 50 sec. (± 15 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
